SPT-5014 Series Three-phase Synchronous Power Transformer

LI077V2/2011

1. Features :

SPT-5014 series three-phase synchronous power transformer is a new product developed to meet the user's requirements of " smaller power " and " smaller volume " . It is made of flame-retardant engineering plastic shell and encapsulated by epoxy. The structure is compact, sturdy, shock-proof, moisture-proof and flame-retardant. Its salient features are:

● Three-phase synchronous signal and power supply voltage are integrated;

● The fully enclosed printed circuit board is directly welded;

● Strong mechanical and environmental isolation.

2. Outline dimensions and terminal arrangement are shown in the Figure below (tolerance ±0.5 mm)

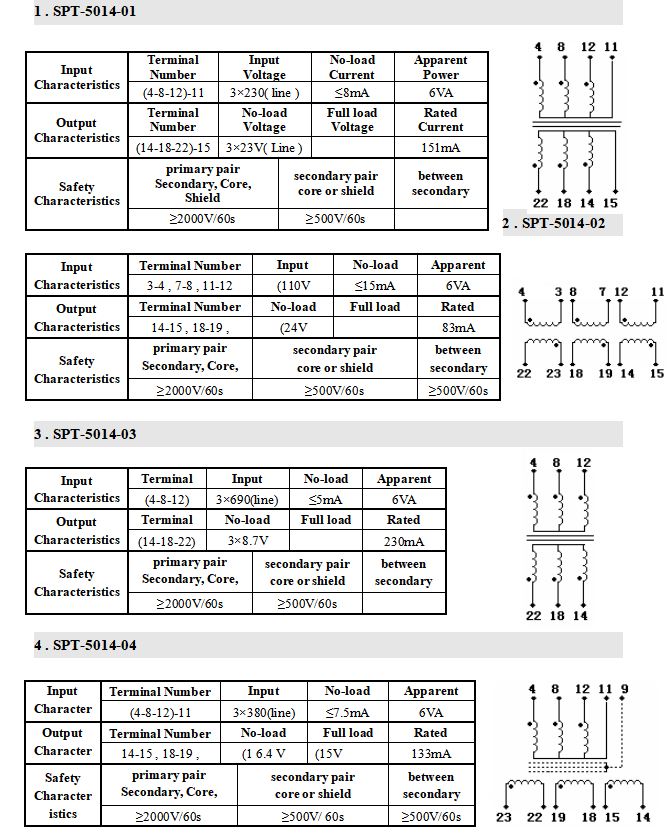

 3. The winding wiring diagram of each Model, the input and Output Characteristics are shown in the following tables

    4. Others:

    The no-load loss of this series of three-phase synchronous power transformers is not more than 0.5W ; the secondary output power can reach 6W ; the parameters can be designed and customized according to user requirements.
