SPT-C93130 Series Three-phase Synchronous Power Transformer

SPT-C93130 series three-phase synchronous power transformer is a new product developed to meet the user's requirements of " replacing imports " and " reducing volume " . It is made of flame-retardant engineering plastic shell and encapsulated by epoxy. The structure is compact, strong, anti-vibration, moisture-proof and flame-retardant. Its salient features are:
● Three-phase synchronous signal and power supply voltage are integrated;
● The fully enclosed printed circuit board is directly welded;
● The positions of strong current input and weak current output are separated;
Two screws connected with the iron core are preset in the lead-out foot surface, which is convenient for fixing ;
● Strong mechanical and environmental isolation.

Standard Product Reservation Custom Product Reservation Contact Us

SPT-C93130 Series General Technical Specifications for Standard Products：

SPT-C93130 Series Three-phase Synchronous Power Transformer

LI011V12/2011

1. Features:

● Three-phase synchronous signal and power supply voltage are integrated;

● The fully enclosed printed circuit board is directly welded;

● The positions of strong current input and weak current output are separated;

Two screws connected with the iron core are preset in the lead-out foot surface, which is convenient for fixing ;

● Strong mechanical and environmental isolation.

2. Dimensions and terminal arrangement see (tolerance ± 0.5 mm) :

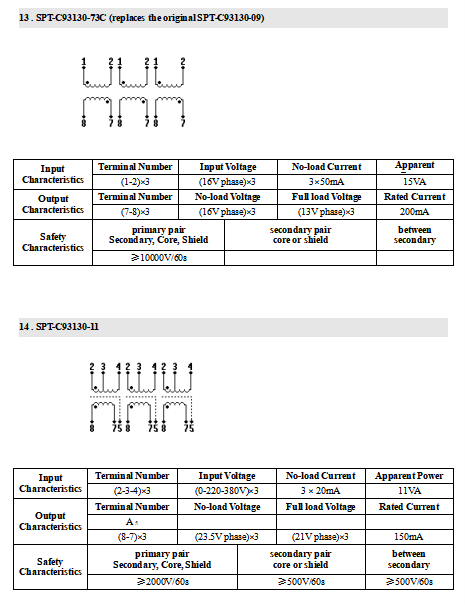

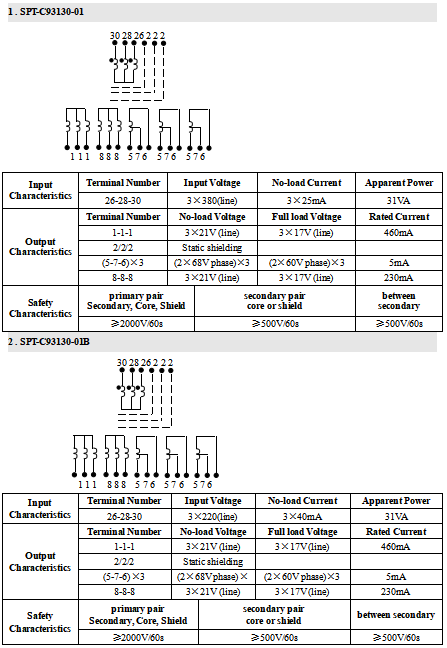

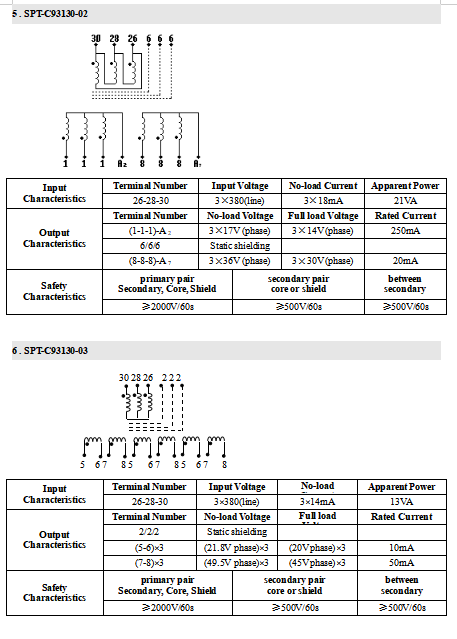

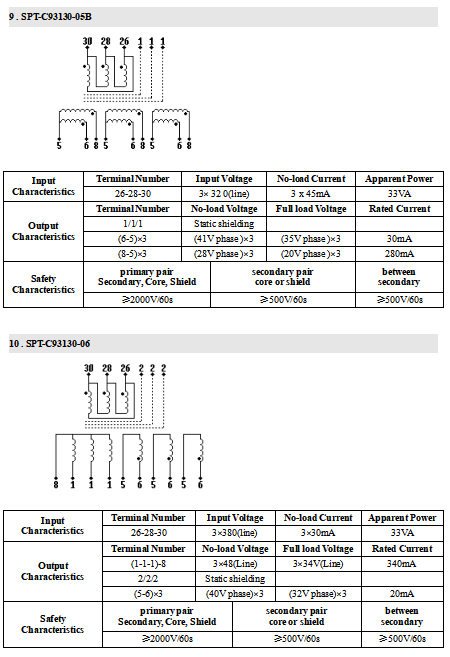

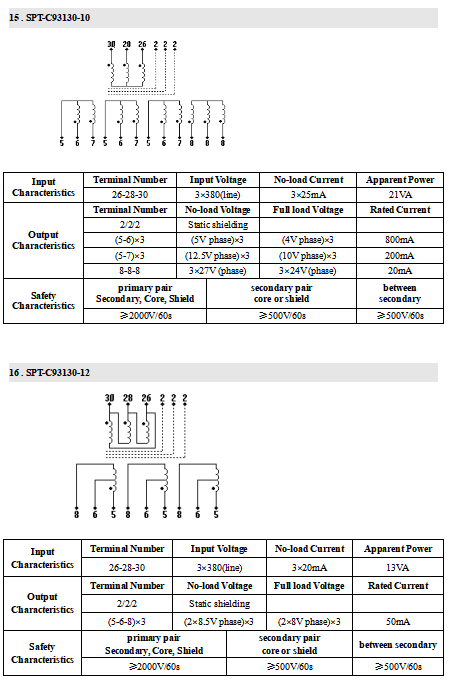

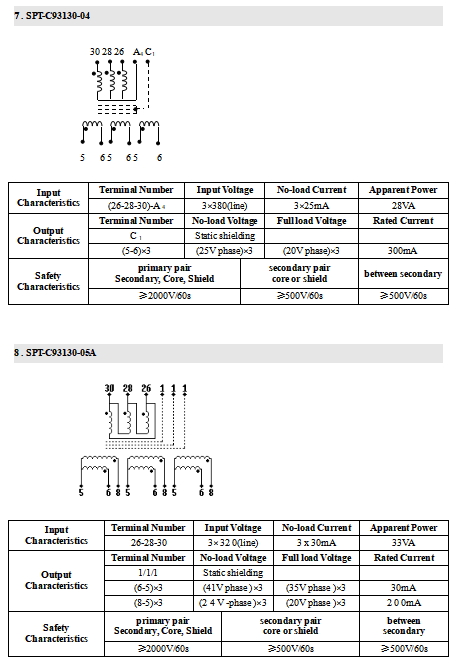

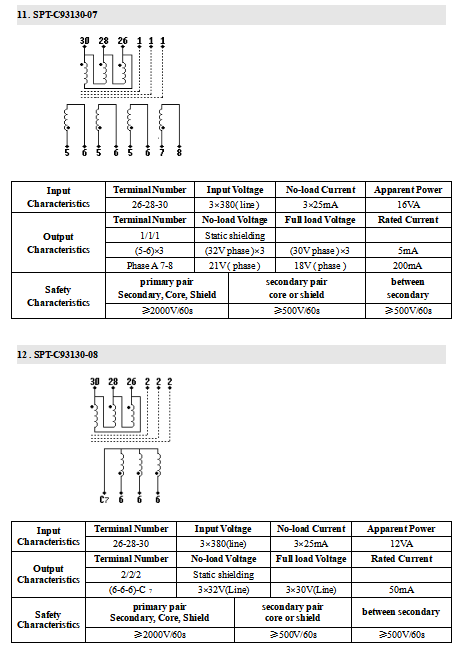

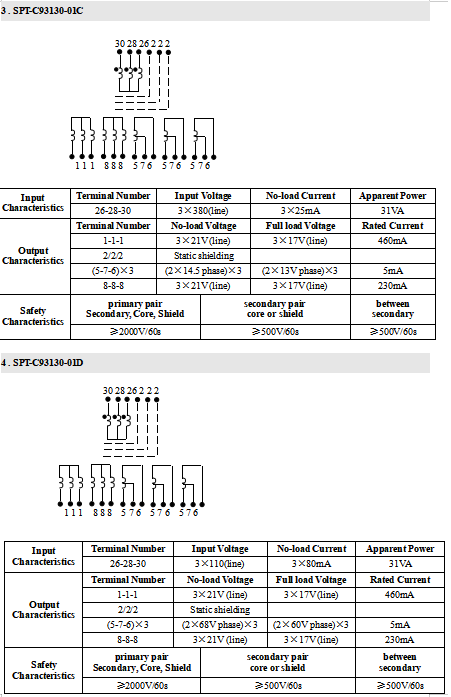

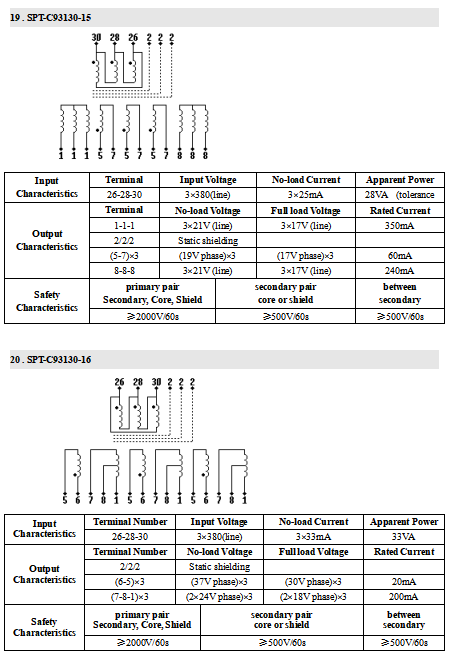

3. The winding wiring diagram of each Model, and the input and Output Characteristics are shown in the following tables.

4. Others:

The no-load loss of this series of three-phase synchronous power transformers is not more than 1.6W ; the secondary output power can reach 20W ; if the existing specifications cannot meet the user's requirements, it can be customized according to the user's requirements.
