1. Features:

    ● Three-phase synchronous signal and power supply voltage are integrated;

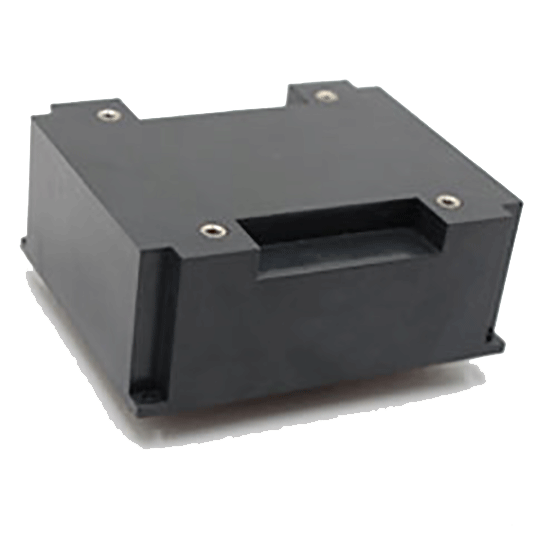

    ● The fully enclosed printed circuit board is directly welded;

    ● There are 4 M4 screw holes connected to the iron core and shielding on the back for easy fixing;

    ● Strong mechanical and environmental isolation, compact structure, strong, anti-vibration, moisture-proof, flame retardant.

  2. See Table 1 and Table 2 for main technical specifications

    Table 1 :

Table 2:

If the specifications in Table 1 and Table 2 cannot meet customer requirements, design customization is acceptable.

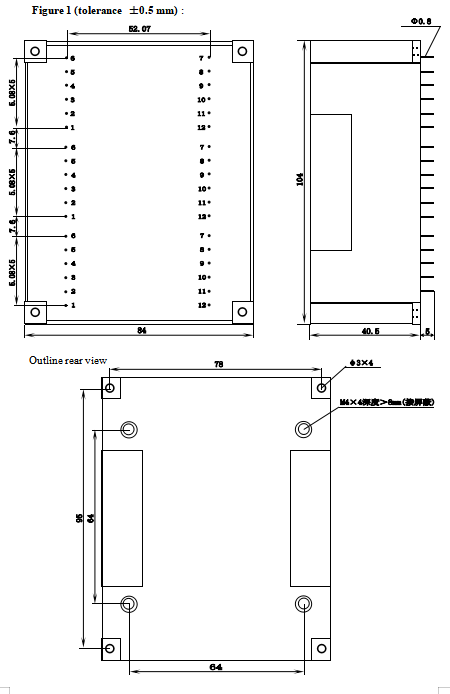

    3. Winding wiring diagram, external dimensions and pin arrangement (tolerance±0.5 mm)
