1．Features:

① This component has a miniature size and high precision. It is capable of being directly soldered onto a PCB, is easy to use, and has an elegant outline.

② This component is fully encapsulated and has strong mechanical and environmental endurance, strong dielectric strength, and is safe and reliable.

2．Ambient Conditions

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~20kHz

4．Insulation Thermal Class: Class B (130℃)

5．Safety Features:

① Dielectric resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 2KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

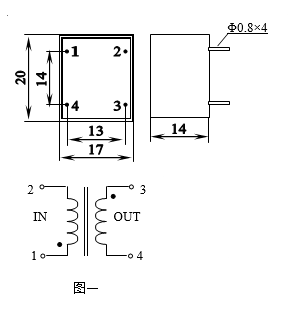

6．Outline Drawing, Installation Dimension and Coil Diagram(tolerance ± 0.3mm)

7．Typical Application and Technical Parameters

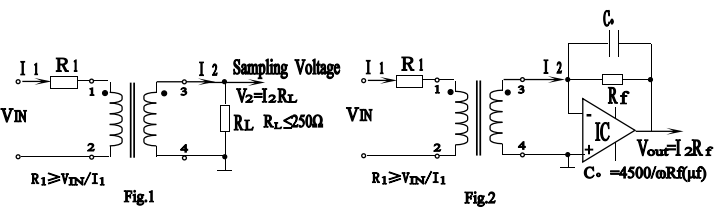

TV1005-1M is actually a current-type voltage transformer. There are two typical applications shown in Fig.1 and Fig.2, respectively. The parameters are listed in Table 1.

Table 1：

8．Attention:

This voltage transformer model is a current-type transformer. Therefore, an open circuit is not permitted in the secondary circuit, and no fuse should be connected in the secondary circuit.
