1.Features:
① The input coil is built-in, the printed circuit board is directly welded and installed, and the appearance is beautiful;
② Input and output ratios are adjustable, easy to use and flexible;
③ Small size, high precision; fully enclosed, good mechanical and environmental resistance , strong voltage isolation capability, safe and reliable.
2.Ambient Conditions:
① Ambient temperature: -55℃~+85℃;
② Relative humidity: ≤90% at 40℃;
③ Atmospheric pressure: 860~1060mbar(about 650~800mmHg).
3.Operating Frequency Range: 20Hz~1kHz
4.Insulation Thermal Class: Class B (130°C)
5.Safety Features:
① Dielectric resistance: >1000MΩ in normal condition;
② Insulation withstand voltages: 2KV 50Hz/1min;
③ Fire retardancy: In conformity with UL94-V0.

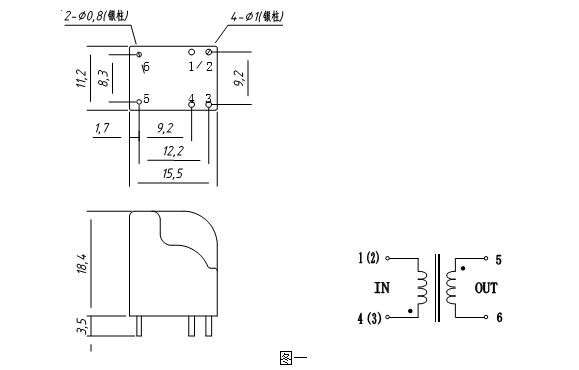

6.Outline Drawing, Installation Dimension and Coil Diagram: ( tolerance ± 0.3mm)
7. Typical Application and Technical Parameters:

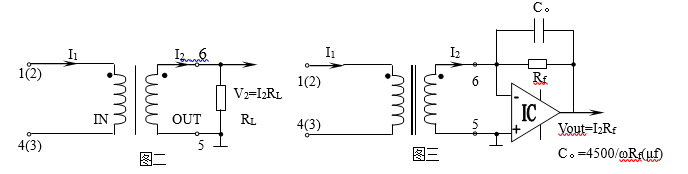

① When the sampling voltage is directly obtained by the resistance method ( Figure 2 ) , the performance parameters are shown in Table 1;
② When the sampling voltage is obtained by the IC method ( Figure 3 ) , the performance parameters are shown in Table 2;
Table 1:
Model | Rated Input Current | Rated Output Current | Rated Sampling Resistance | Rated Sampling Voltage | Phase Shift | Non Linearity | Linear Range | Connection Method |
TA0914-1 | 20A | 20 mA | 50Ω | 1.0V | ≤50’ | ≤ 1 % | ≥2 times of the rated value | 1-2 short circuit 3-4 short circuit |
10A | 20 mA | 50Ω | 1.0V | ≤50’ | ≤ 1 % | ≥2 times of the rated value | 1-3 short circuit 2-4 input |
Table 2:
Model | Rated Input Current | Rated Output Current | Rated Sampling Voltage | Phase Shift | Non Linearity | Linear Range | Connection Method |
TA0914-1 | 20A | 20 mA | ≤1/2 times IC power supply voltage | ≤20’ | ≤ 0.5 % | ≥2 times of the rated value | 1-2 short circuit 3-4 short circuit |
10A | 20 mA | ≤1/2 times IC’s power supply voltage | ≤20’ | ≤ 0.5 % | ≥2 times of the rated value | 1-3 short circuit 2-4 input |
8.Attention:
① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.
② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
