1．Features:

① Vertical pass-through design allows flexible installation, can be fixed on busbar or baseplate;

② Different secondary lead wire colors for easy identification of same-name terminal and three phases;

③ Epoxy potting provides strong vibration resistance and aesthetic appearance.

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class: Class B (130°C)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 3KV 50Hz/1min.

③ Fire retardancy: In conformity with UL94-V0.

④ Overload characteristics: the transformer can operate continuously at 5 times the rated current; can operate for 10 minutes at 10 times the rated current.

6．Outline Drawing, Installation Dimension and Coil Diagram: (tolerance±1mm)

① Outline drawing and installation Dimensions are shown in Figure 1 :

                                                 Fig 1

Note: Phase A output is yellow wire, Phase B output is green wire, Phase C output is red wire, black wire is common wire.

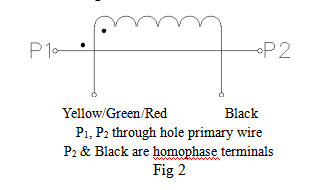

② The coil diagram is shown in Figure2：

7. Performance Parameters:

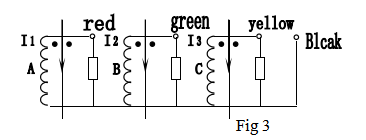

Performance parameters when applied as shown in Figure 3 are listed in the table below:

8. Attention:

① Connect the primary winding of the current transformer in series in the circuit under test. Operate the secondary winding approximately in a short-circuit state.

② Do not allow the secondary circuit of the current transformer to be open-circuited. Do not install any fuses in the secondary circuit.
