1．Features:

① The printed circuit board is directly welded and installed , and the appearance is beautiful;

② Reliable insulation between primary winding and secondary winding, winding and shielding;

③ The primary side does not have a series resistance input, and the secondary side directly outputs voltage;

④Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, safe and reliable.

2．Ambient Conditions：

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~20kHz

4．Insulation Thermal Class: Class B (130℃)

5．Safety Features:

① Dielectric resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 3000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

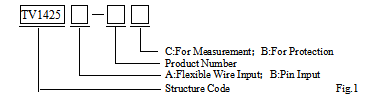

6. Model Naming Rules:

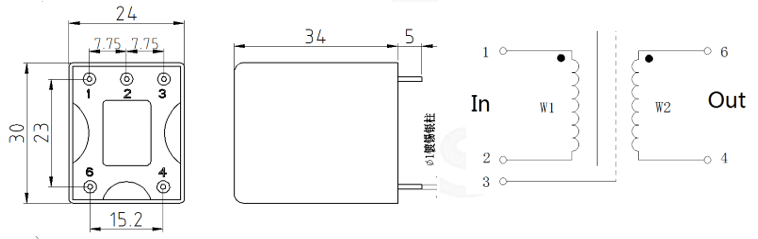

7. Outline Drawing, Installation Dimensions and Coil Diagram : (tolerance ± 0.5 mm):

                    图二

8. Performance Parameters:

Note: If the specifications in the table do not meet the user's requirements, customization is available based on the user's specifications.
