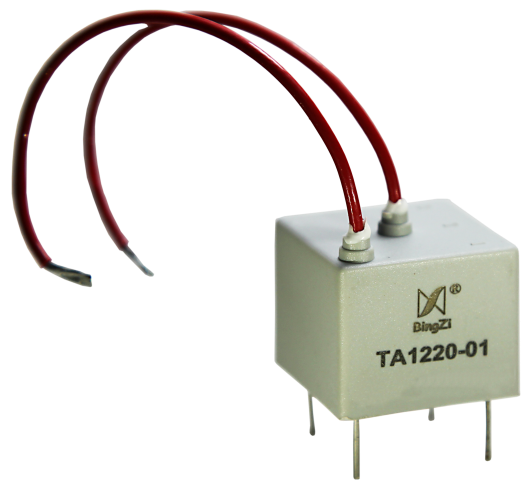

TA1220 Series Current Transformer
TA1220 Series Current Transformer
Features:
① The busbar is built-in, the flexible wire is led out, and the printed circuit board is directly welded and installed;
② Small size, high precision, beautiful appearance;
③ Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability.
TA1220系列 General Technical Specifications for Standard Products:

1Features:

① The busbar is built-in, the flexible wire is led out, and the printed circuit board is directly welded and installed;

② Small size, high precision, beautiful appearance;

③ Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability.



2Ambient conditions:

① Ambient temperature: -55℃+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 8601060mbar(about 650800mmHg).



3Operating Frequency Range: 20Hz~20kHz



4Insulation Thermal ClassClass B (130°C)



5Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.



6. Outline Drawing, Installation Dimension and Coil Diagram : ( tolerance ± 0.5mm )

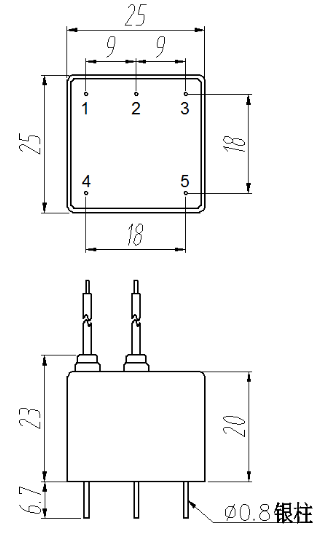

① Outline drawing and installation dimensions are shown in Figure 1:

② The coil diagram is shown in Figure 2:


                      Fig 1


                   Fig 2



7. Typical Application and Performance Parameters:

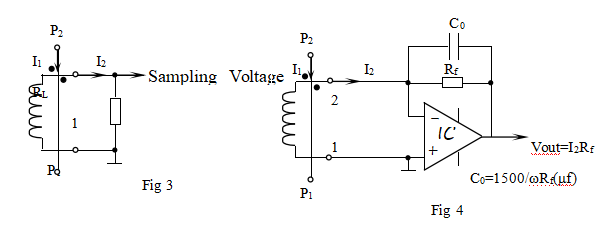

① When the sampling voltage is directly obtained by the resistance method ( as shown in Figure 3 ) , the performance parameters are shown in Table 1 ;

② When using the IC method to obtain the sampling voltage ( as shown in Figure 4 ) , the performance parameters are shown in Table 2.


Table 1 :

Model

Rated

Input Current

Rated

Output Current

Rated

Sampling Resistance

Rated

Sampling Voltage

Phase Shift

Non-linearity

Linear Range

TA1220-01

10A

10mA

300Ω

3V

≤50'

≤0.5%

≥3 times of

the rated value

TA1220-01M

10A

10mA

150Ω

1.5V

≤10'

≤0.2%

Table 2 :

Model

Rated

Input Current

Rated

Output Current

Rated Sampling Voltage

Phase Shift

Non-linearity

Linear Range

TA1220-01

10A

10mA

≤1/2 times IC power supply voltage

≤5'

≤0.1%

≥3 times of

the rated value

TA1220-01M

10A

10mA



8Attention:

 Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

 Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
