1.Features

①Fully-encapsulated printed circuit board being able to be directly welded and assembled, easy to use, with aesthetic appearance;

②Compact structure, strong, vibration resistance, moisture-proof, flame retardant;

③Small no-load current, high power factor, wide input overvoltage range;

④Anti-electric strength up to 35kV.

2. Ambient Conditions

①Temperature: -25℃～+70℃;

②Relative humidity: ≤90% at 40℃;

③Atmospheric pressure: 860～1060mbar (650～800mmHg approximately).

3. Insulation Rating: Class B (130℃)

4. Safety Characteristics

①Dielectric resistance: >1000MΩ in normal condition;

②Insulation withstand voltages: 12KV /1 min;

③Insulation impact strength: Continuously 20 times impact of 6KV/50μS;

④Fire retardancy: In conformity with UL94-V0.

5. Safety approval:

6. Rated Power：5VA

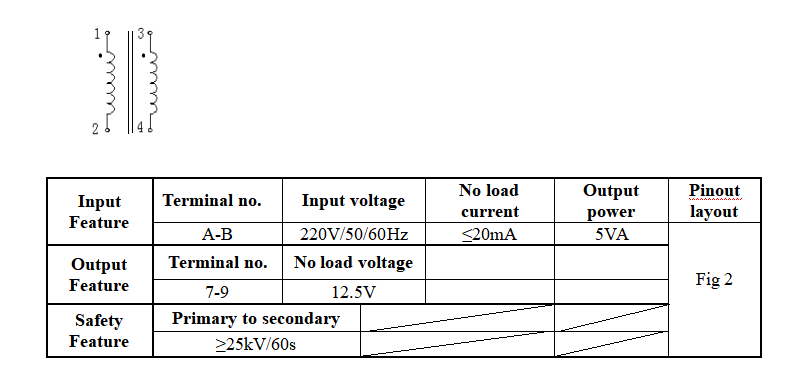

8. Existing model parameter

1．SG3505-01

This series of products are customized. Other parameters can be designed according to customer requirements.
