1. Features:

① The fully enclosed printed circuit board is directly welded and installed, easy to use and beautiful in appearance;

② Compact structure, strong, anti-vibration, moisture-proof, flame-retardant, high electric strength;

③ High input voltage, small size and high power density.

2. Ambient Conditions：

① Ambient temperature: -25℃～+70℃

② Relative humidity: ≤ 90% at 40°C

③ Atmospheric pressure: 860～1060mbar (650～800mmHg approximately)

3. Insulation Rating: Class B (130℃)

4. Safety Features:

① Insulation resistance:> 1000MΩ in normal condition;

② Insulation withstand voltages: better than GB/T12590 standard requirements;

③ Fire retardancy: In conformity with UL94-V0;

④ Insulation impact strength: Continuously 10 times impact of 6kV/50μs.

5. Safety Approval: CE

6. Rated Power : 6VA

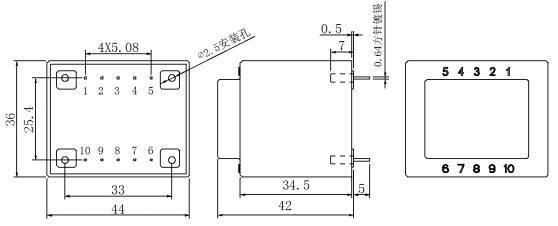

7. Outline Drawing , Installation Dimension and Pin Position:

 Figure 1

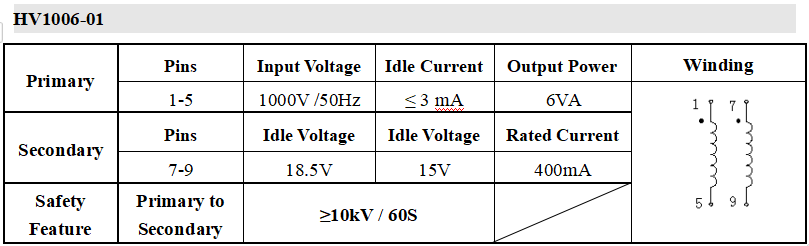

8.Model List:

9. The parameters of this series of products are customized, and the parameters can be designed according to customer requirements.
