1．Features:

① Small size, high precision; printed circuit board directly soldered and installed, easy to use, beautiful appearance;

② Fully enclosed, good mechanical and environmental resistance , strong voltage isolation capability, safe and reliable.

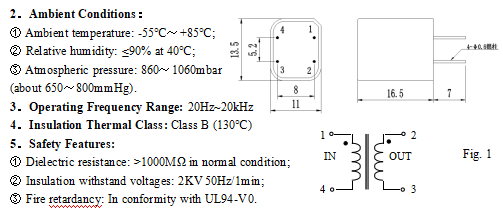

6. Outline Drawing, Installation Dimension and Coil Diagram (Figure 1) : (tolerance ± 0.5mm)

7. Typical Application and Performance Parameters:

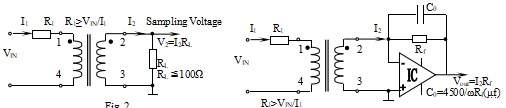

TV0 710-1M is a current-mode voltage transformer, the typical application is shown in Figure 2 and Figure 3, and the performance parameters are shown in the table below.

8. Attention:

This voltage transformer model is a current-type transformer. Therefore, an open circuit is not permitted in the secondary circuit, and no fuse should be connected in the secondary circuit.
