1．Features:

① Vertical through-hole, can be directly welded onto PCB.

② Compact size, high precision, and elegant design.

③ Fully encapsulated, with strong mechanical and environmental endurance, and excellent insulating capabilities.

2．Ambient Conditions：

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range:20Hz~20kHz

4．Insulation Thermal Class：Class B (130℃)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

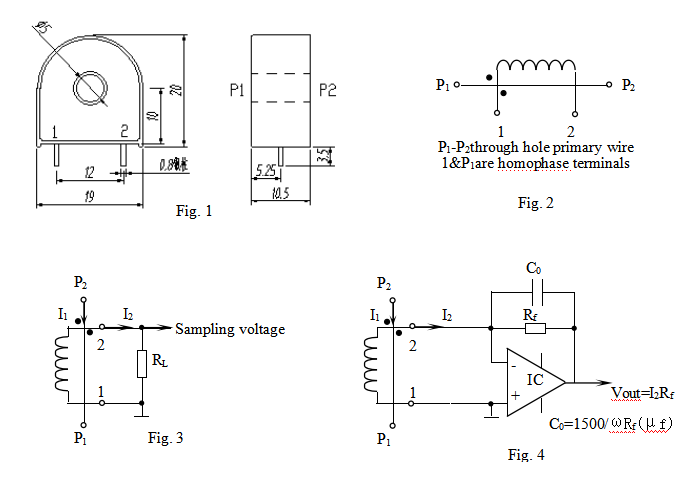

6．Outline Drawing, Installation Dimension, and Coil Diagram: ( tolerance ± 0.5mm)

7．Typical Application and Technical Parameters:

①The parameters are listed in Table 1 while the sampling voltage is obtained directly by using a resistor (as shown in Fig.3).

②The parameters are listed in Table 2 while the sampling voltage is obtained by using an IC (as shown in Fig.4)

Table 1：

Table 2：

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
