1. Features:

①The fully enclosed printed circuit board is directly welded and installed, easy to use, and beautiful in appearance;

②Compact structure, strong, anti-vibration, moisture-proof, flame-retardant, high electric strength;

③High input voltage, small size, high power density.

2.Ambient Conditions:

①Ambient temperature: -25℃～+70℃

②Relative humidity: not more than 90% when the temperature is 40°C

③Atmospheric pressure: 860~1060mbar (about 650~800mmHg)

3. Insulation Rating: Class B (130°C)

4. Safety Features:

①Insulation resistance: greater than 1000MΩ under normal conditions

②Insulation withstand voltages: better than GB/T1 52 90 standard requirements ;

③Flame retardancy: in line with UL94-V0;

④Electric shock resistance: can withstand pulse 6kV/50μs 10 consecutive shocks;

5. Safety Approval: CE ,

6. Rated Power : 20VA

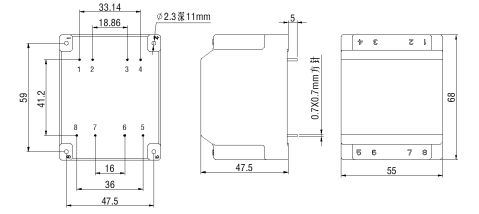

7. Outline Drawing , Installation Dimension and Pin Position ( in the specific product models, unused pins are not drawn out ) :

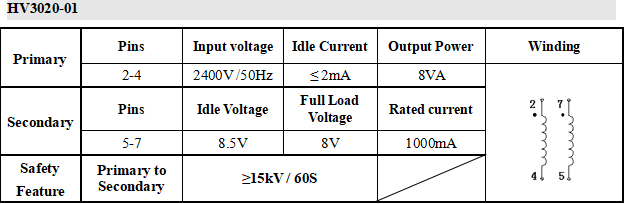

8. Model List:

9.The parameters of this series of products are customized, and the parameters can be designed according to customer requirements.
