1．Features:

① Mounted directly on 3×40 flat-wires.

② Completely sealed, with strong mechanical and environmental endurance, high dielectric strength, and safe and reliable operation.

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：Class F (155℃)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

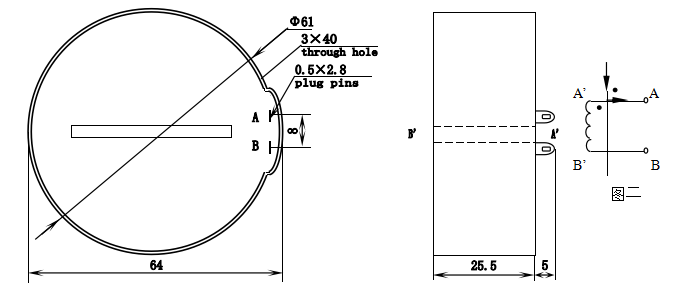

6．Outline Drawing, Installation Dimension and Coil Diagram :( tolerance ± 0.5mm )

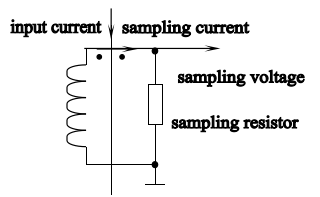

7．Typical Application and Parameters:

The parameters in this application as shown in the  Fig. are listed in the table below:

● Notes:

a. In practical applications, it is recommended to use a sampling resistor that is smaller than or equal to the rated value given in the table above, as this can help to improve the non-linearity and phase shift of the device.

b. If the required current ratio is not listed in the table above, we can provide custom-made options to meet specific needs.

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
