1．Features:

① Directly fixed on the 5 × 40 flat busbar ;

②
Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, safe and reliable.

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：Class B (130°C)

5．Safety Features:

① Dielectric resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6．Outline Drawing, Installation Dimension and Coil Diagram :( tolerance ± 0.5mm )

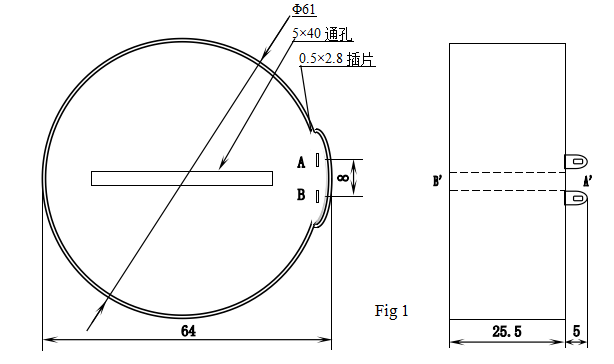

① Outline drawing and installation dimensions
are shown in Figure 1:

② The coil diagram is shown in Figure 2 :

8. Typical Applications and Performance Parameters:

See the table below for the application performance parameters shown in Figure 3.

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the Rated value given in the above table, which will improve the nonlinearity and phase shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
