1.  Features

   ①Fully-encapsulated printed circuit board being able to be directly welded and assembled, easy to use, with aesthetic appearance;

   ②Compact structure, strong, vibration resistance, moisture-proof, flame retardant;

   ③Small no-load current, high power factor, wide input overvoltage range;

   ④Anti-electric strength up to 12kV;

          ⑤Able to be added flexible wire as pin-out according to user requirements.

2.  Ambient Conditions

① Temperature: -25℃～+70℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar (650～800mmHg approximately).

   3.  Insulation Rating: Class B (130℃)

4.  Safety Characteristics

① Dielectric resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 12KV /1 min;

③ Insulation impact strength: Continuously 20 times impact of 6KV/50μS;

④ Fire retardancy: In conformity with UL94-V0.

5. Safety approval: CE

   6. Rated Power：8VA

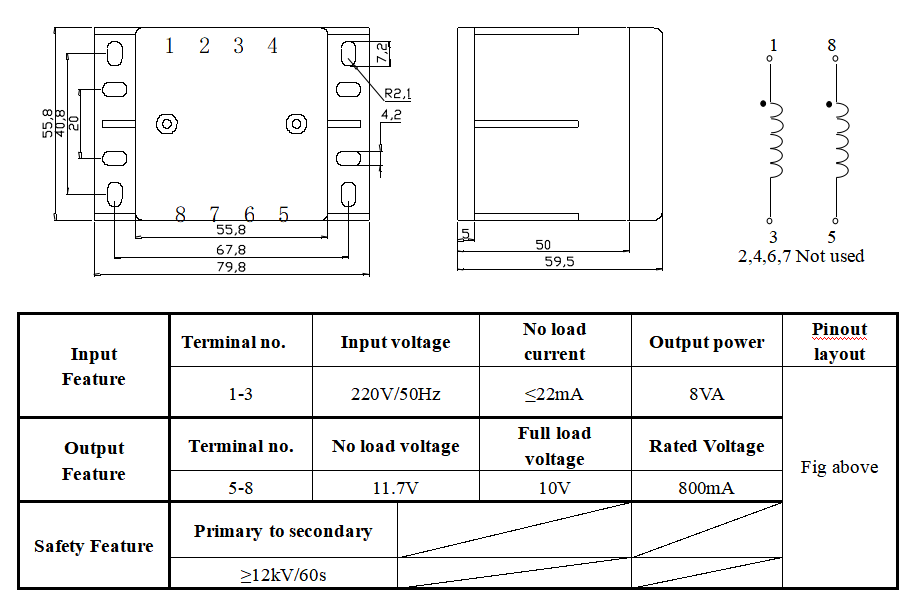

  7.Outline, Installation Dimension and Detailed Technical Parameters

This series of products are customized. Other parameters can be designed according to customer requirements.
