1．Features:

① Vertical core, flexible installation, can be fixed on the busbar or on the bottom plate;

② The output is in the form of flexible wires, which is convenient for wiring at the engineering site.

2．Ambient Conditions

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：Class B grade ( 130 ℃ )

5．Safety Features:

① Dielectric resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6. Outline Drawing, Installation Dimension and Coil Diagram: ( tolerance ± 0.5mm)

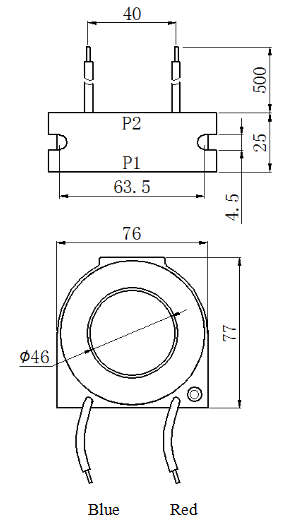

① Outline drawing and installation dimensions are shown in Figure 1:

② The coil diagram is shown in Figure 2:

7. Typical Application and Performance Parameters:

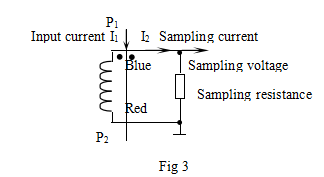

See the table below for performance parameters when applied as shown in Figure 3 :

Note: This series of transformers is used for motor protection, soft start, and large current monitoring.

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the rated value given in the above table, which will improve the nonlinearity and phase shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop, and operate the secondary winding in near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited and do not install any fuse in the secondary circuit.
