1．Features:

① Vertical core, flexible installation, can be fixed on the busbar or on the bottom plate;

② It can be equipped with various types of busbars, such as flat busbars, round busbars or cables;

③ The output terminal is a screw fastened crimping type standard terminal, which is convenient for wiring at the engineering site;

④ Box structure, closed plastic case, beautiful appearance.

2．Ambient Conditions:

① Ambient temperature:-30℃~+ 70℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 50Hz ~ 60Hz

4．Insulation Thermal Class：Class E ( 120℃)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 3000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6. Outline Drawing, Installation Dimension and Coil Drawing:( tolerance ± 1mm )

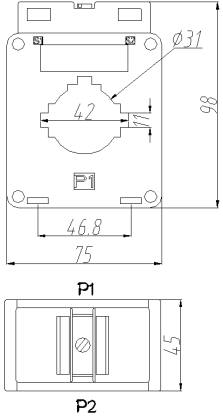

① Outline drawing and installation dimensions are shown in Figure 1:

② The coil diagram is shown in Figure 2:

● Note: Each product is supplied with two bottom plate feet, one busbar foot, two screws and suction cups for fixing the busbar, and the installation instructions are as follows.

③ Installation Instructions:

● When fixing to the bottom plate: take two feet ( supplied with the product ) and insert them into the foot sockets on the bottom plate as shown in Figure 3. The center distance of the installation hole is 60 × 46.8; the diameter of the foot installation hole is Φ5.0; the transformer can be fixed on the bottom plate with M5 screws;

● When fixing on the busbar: take a foot with M5 holes ( supplied with the product ) and insert it into the busbar foot slot as shown in Figure 3. The center distance of the M5 holes is 5 9 , and the transformer can be fixed on the busbar with M5 screws .

7. Typical Application and Performance Parameters:

See the table below for performance parameters when applied as shown in Figure 4.

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the rated value given in the above table, which will improve the nonlinearity and phase shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8. Attention :

① Connect the primary of the current transformer in series with the measured current loop, and operate the secondary in near short circuit mode.

② Do not allow the secondary of the current transformer to be open circuited and do not install any fuse on the secondary.
