1．Features:

① Vertical core, flexible installation, can be fixed on the busbar or on the bottom plate;

② It can be equipped with various types of busbars, such as flat busbars, round busbars or cables;

③ The output terminal is a screw fastened crimping type standard terminal, which is convenient for wiring at the engineering site;

④ Box structure, closed plastic case, beautiful appearance.

2．Ambient Conditions:

① Ambient temperature: -30℃~+70℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Range of Operating Frequency: 50 Hz or 60 Hz .

4．Insulation Thermal Class：Class E (120°C).

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 3000V 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6．Outline Drawing, Installation Dimension and Coil Diagram:(tolerance±1mm)

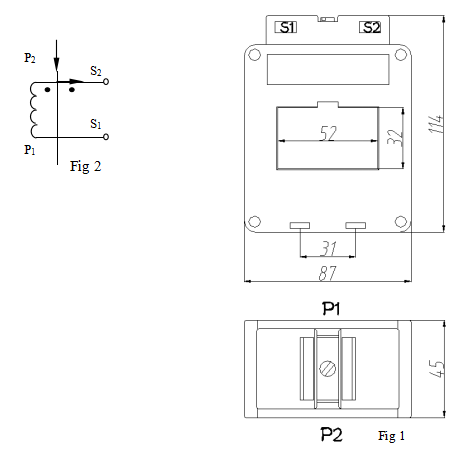

① Outline drawing and installation dimensions are shown in Figure 1:

② The coil diagram is shown in Figure 2:

● Note: Each product is supplied with two bottom plate feet, one busbar foot, two screws and suction cups for fixing the busbar, and the installation instructions are as follows.

③ Installation Notes:

● When fixing to the bottom plate: take two feet ( supplied with the product ) and insert them into the foot sockets on the bottom plate as shown in Figure 3. The center distance of the mounting holes is 60 × 31; the mounting hole diameter of the feet is Φ5.0; the transformer can be fixed on the bottom plate with M5 screws.

● When fixing to the busbar: take two M5 bolts and nuts ( supplied with the product ) and insert them into the slots as shown in Figure 3, and fix the transformer on the busbar.

7. Typical Application and Performance Parameters:

See the table below for performance parameters when

 applied as shown in Figure 4 .

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the rated value given in the above table, which will improve the nonlinearity and phase shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8. Attention:

① The primary of the current transformer should be connected in series with the current circuit under test, and the secondary should operate in approximate short-circuit mode;

② The secondary circuit of the current transformer must not be allowed to open circuit during operation, so please do not install any fuse.
