1．Features:

① Vertical core-through , beautiful appearance;

② High frequency, fully enclosed, good mechanical and environmental resistance ;

③ Strong voltage isolation capability, safe and reliable ;

④ The plug-in piece is drawn out, and the connection is convenient and firm.

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar

(about 650～800mmHg).

3．Operating Frequency Range: 2kHz～200kHz

4．Insulation Thermal Class: Class B (130℃)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6. Outline Drawing, Installation Dimension and Coil Diagram:( tolerance ± 0.5mm )

① The outline drawing and installation dimensions are shown in Figure 1:

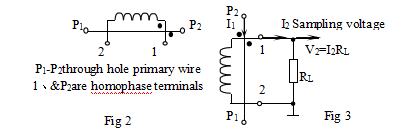

② The coil diagram is shown in Figure 2:

                                    Fig 1

7. Typical Application and Performance Parameters:

8．Attention:

① Connect the primary winding of the current transformer in series with the measured current loop. Operate the secondary winding in a near short-circuit mode.

② Do not allow the secondary winding of the current transformer to be open-circuited. Do not install any fuse on the secondary winding.
