1. Features:
① Busbar core-through, flexible wire lead-out, panel installation;
② Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability.
2. Ambient Conditions:
① Ambient temperature: -55 ℃ ~+85 ℃ ;
② Relative humidity: ≤ 90% at 40 ℃ ;
③ Atmospheric pressure: 860~1060mbar(about 650~800mmHg).
3. Operating Frequency Range : 50Hz~400Hz
4. Insulation Thermal Class: Class B (130℃)
5. Safety Features:
① Insulation resistance:>1000MΩ in normal condition ;
② Insulation withstand voltages: 6000V 50Hz / 1 min ;
③ Fire Retardant: In conformity with UL94-V0.
6. Outline Drawing, Installation Dimension
and Coil Diagram : ( tolerance ± 1mm )

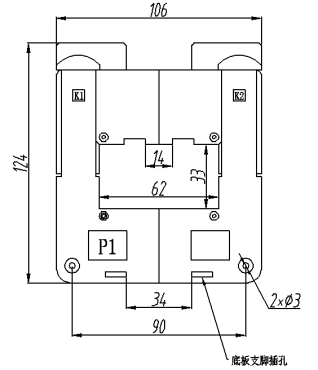

① Outline drawing and installation dimensions are shown in Figure 1:
② The coil diagram is shown in Figure 2:
Fig 1
● Description: Each product is supplied with two bottom plate feet, two sets of busbar feet and fixing busbar screws. See below for installation instructions.
③ Installation instructions :
● When fixing to the bottom plate :
Take the two feet ( supplied with the product ) and insert them into the foot sockets on the bottom plate as shown in Figure 3 on the right. The center distance of the mounting holes is 68×44.7 ; the mounting hole diameter of the feet is Φ5.0 ; the transformer can be fixed on the bottom plate with M5 screws.
● When fixing on the busbar :
Insert the two feet with M5 holes (supplied with the product ) into the slot of the busbar feet as shown in Figure 3. The center distance of the M5 holes is 59 , and the transformer can be fixed on the busbar with M5 screws.
7. Typical Application and Performance Parameters:
When the sampling voltage is directly obtained by the resistance method ( as shown in Figure 4 ) , the performance parameters are shown in the table below .
Model | Rated Input Current | Rated Output Current | Rated Sampling Resistance | Rated Sampling Voltage | Phase Shift | Non-linearity | Linear Range |
TAK60-01 | 500A | 5A | 0.16Ω | 0.8V | ≤50' | ≤1.0% | ≥3 times of the rated value |
8.Attention:
① Connect the primary winding of the current transformer in series with the loop of the measured current. Operate the secondary winding in a near short-circuit mode.
② Do not allow the secondary circuit of the current transformer to be open-circuited. Do not connect any fuse in the secondary loop.
