TA3238 Series Zero Sequence Current Transformer
TA3238 Series Zero Sequence Current Transformer
Features:
① It can measure the zero-sequence current in the system whose main circuit current is below 100A ;
② Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, safe and reliable;
③ Soft line output, easy to use and flexible.
TA3238 General Technical Specifications for Standard Products:

1Features:

① It can measure the zero-sequence current in the system whose main circuit current is below 100A ;

 Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, safe and reliable;

③ Soft line output, easy to use and flexible.



2Ambient Conditions:

① Ambient temperature: -55℃+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 8601060mbar(about 650800mmHg).



3Operating Frequency Range: 20Hz~1kHz



4Insulation Thermal ClassClass B (130°C)



5Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

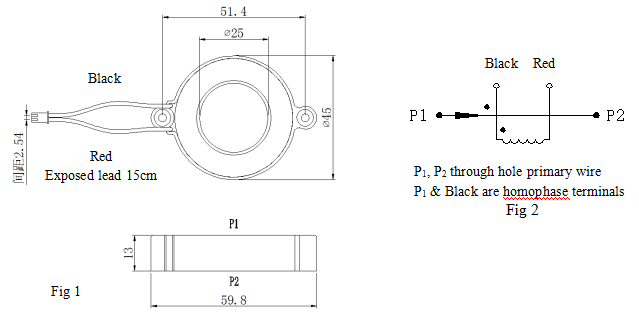

6Outline Drawing, Installation Dimension and Coil Diagram:( tolerance ± 0.5mm)

① Outline drawing and installation dimensions are shown in Figure 1 :

② The coil diagram is shown in Figure 2 :


7. Typical Application and Performance Parameters:

See the table below for the application performance parameters shown in Figure 3.


Model

Rated

Input Current

Rated

Output Current

Rated

Sampling Resistance

Rated

Sampling Voltage

phase Shift

Non-linearity

Linear Range

TA3238-01M

1A

1mA

100Ω

0.1V

≤60'

≤0.5%

≥2 times of the rated value

TA3238-02M

1A

0.5mA

400Ω

0.2V

≤60'

≤0.5%

Notes:

a . In practical applications, the sampling resistance should be less than or equal to the Rated value given in the above table, which will improve the nonlinearity and phase shift;

b . If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.



8. Attention:

 The primary of the current transformer should be connected in series with the circuit being measured, and the secondary should work close to a short circuit condition.

The secondary circuit of the current transformer should not be open-circuited. Therefore, please do not install fuses.
