1．Features:

① Vertical core, flexible installation, can be fixed on the busbar or on the bottom plate;

② The output is in the form of flexible wires, which is convenient for wiring at the engineering site .

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：Class B (130°C)

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 5KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

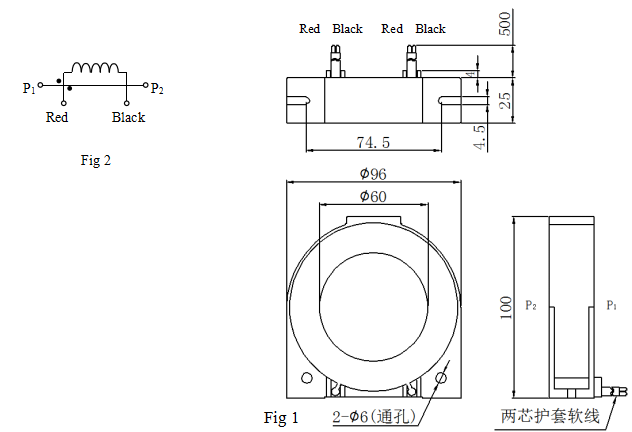

6．Outline Drawing, Installation Dimension and Coil Diagram:( tolerance ± 0.5mm)

① Outline drawing and installation dimensions are shown in Figure 1:

② The coil diagram is shown in Figure 2:

7. Typical Application and Performance Parameters:

See the table below for performance parameters in typical applications as shown in Figure 3 on the right:

Note: This series of transformers is used for zero-sequence current protection. It is designed with a shielding layer. The length of the output lead can be customized according to customer requirements .

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the rated value given in the above table, which will improve the nonlinearity and phase shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8. Attention:

① The primary of the current transformer should be connected in series with the circuit being measured, and the secondary should work close to a short circuit condition.

② The secondary circuit of the current transformer should not be open-circuited. Therefore, please do not install fuses.
