1．Features:

① Directly fixed on the 32 × 6.5 flat busbar ;

② Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, safe and reliable.

2．Ambient Conditions:

① Ambient temperature: -55℃～+85℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1k Hz

4．Insulation Thermal Class：Class B ( 130 ℃ )

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 6KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

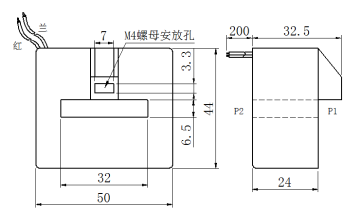

6. Outline Drawing, Installation Dimension and Coil Diagram: (tolerance ± 0.5mm)

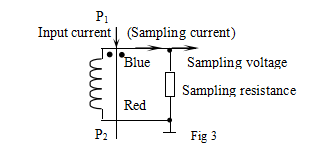

② The coil diagram is shown in Figure 2 :

7. Performance Parameters:

See the table below for the application performance parameters shown in Figure 3.

● Notes:

a. In practical applications, the sampling resistance should be less than or equal to the Rated value given in the above table, which will improve the nonlinearity and Phase Shift;

b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.

8．Attention:

① The primary winding of the current transformer should be connected in series with the current circuit under test. The secondary winding should be operated close to a short-circuit condition.

② The secondary circuit of the current transformer must not be open-circuited. Therefore, do not install a fuse in the secondary circuit.
