1.Features:
① Fully enclosed, good environmental resistance, strong insulation and isolation capabilities, moisture-proof and shock-proof, and beautiful appearance;
② Different colors of the secondary lead wires of the current transformer facilitate the distinction of terminals with the same name;
③ The use of combined transformers saves more space in the table than the same number of single transformers .
2.Ambient Conditions:
① Ambient temperature: -55℃~+85℃;
② Relative humidity: ≤90% at 40℃;
③ Atmospheric pressure: 860~1060mbar(about 650~800mmHg).
3.Operating Frequency Range : 20Hz~1kHz
4.Insulation Thermal Class: Class B (130°C)
5.Safety Features:
① Insulation resistance: >1000MΩ in normal condition;
② Insulation withstand voltages: 6KV 50Hz/1min.
③ Fire retardancy: In conformity with UL94-V0.
6.Outline Drawing, Installation Dimension and Coil Diagram: ( tolerance ± 0.5mm )
①Outline drawing and installation dimensions are shown in Figure 1 :
● Note: The lengths of both the input and output leads can be customized according to customer requirements.

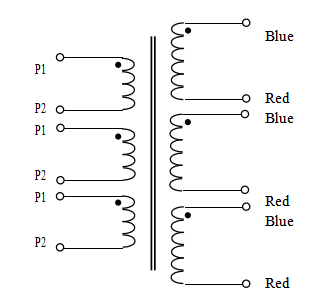

② The coil diagram is shown in Figure2:
Fig 2
7. Performance Parameters:

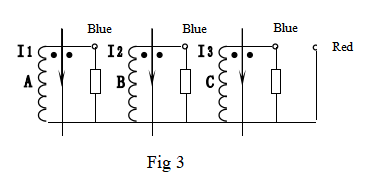

See the table below for performance parameters when applied as shown in Figure 3:
Model | Rated Input Current | Rated Output Current | Rated Sampling Resistance | Rated Sampling Voltage | Phase Shift | Non-linearity | Linear Range |
STA1218-01M | 10A | 10mA | 150Ω | 1.5V | ≤25' | ≤0.2% | ≥2 times of the rated value |
STA1218-02M | 20A | 10mA | 300Ω | 3.0V | ≤20' | ≤0.2% | ≥2 times of the rated value |
STA1218-03M | 30A | 10mA | 450Ω | 4.5V | ≤15' | ≤0.2% | ≥2 times of the rated value |
● Notes:
a. In practical applications, the sampling resistance should be less than or equal to the rated value given in the above table, which will improve the nonlinearity and phase shift;
b. If the conversion ratio required by the user is different from the above, it can be customized according to the user's requirements.
8. Attention:
① Connect the primary winding of the current transformer in series in the circuit under test. Operate the secondary winding approximately in a short-circuit state.
② Do not allow the secondary circuit of the current transformer to be open-circuited. Do not install any fuses in the secondary circuit.
