1．Features:

① Vertical core, flexible installation, can be fixed on the busbar or on the bottom plate;

② The perforation of the busbar is circular and arranged in the shape of "pin";

③ The output terminal is a standard socket, and a matching plug is supplied, which is easy to use;

④ Box structure, closed plastic case, beautiful appearance.

2．Ambient Conditions:

① Ambient temperature: -55℃～+55℃;

② Relative humidity: ≤90% at 40℃;

③ Atmospheric pressure: 860～1060mbar(about 650～800mmHg).

3．Operating Frequency Range: 20Hz~1kHz

4．Insulation Thermal Class：80 ℃

5．Safety Features:

① Insulation resistance: >1000MΩ in normal condition;

② Insulation withstand voltages: 4KV 50Hz/1min;

③ Fire retardancy: In conformity with UL94-V0.

6．Outline Drawing, Installation Dimension and Coil Diagram: ( tolerance ± 0.5mm )

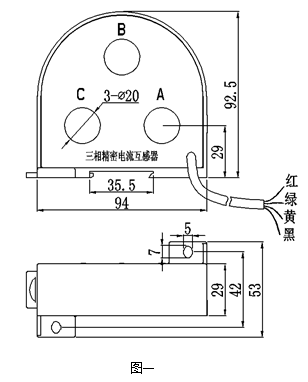

① Outline drawing and installation dimensions are shown in Figure 1

● Note: Each product is provided with a plug, see the installation instructions below.

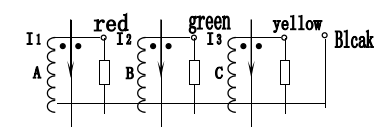

② The coil diagram is shown in Figure 2:

                                                Fig 2

7. Performance Parameters:

See the table below for performance parameters when applied as shown in Figure 2:

8. Attention:

① Connect the primary winding of the current transformer in series in the circuit under test. Operate the secondary winding approximately in a short-circuit state.

② Do not allow the secondary circuit of the current transformer to be open-circuited. Do not install any fuses in the secondary circuit.
